Product Details:
- Pack Type: Box
- Pack Quantity: 100 Pieces
- Barcode: 5055017597208
Key Features:

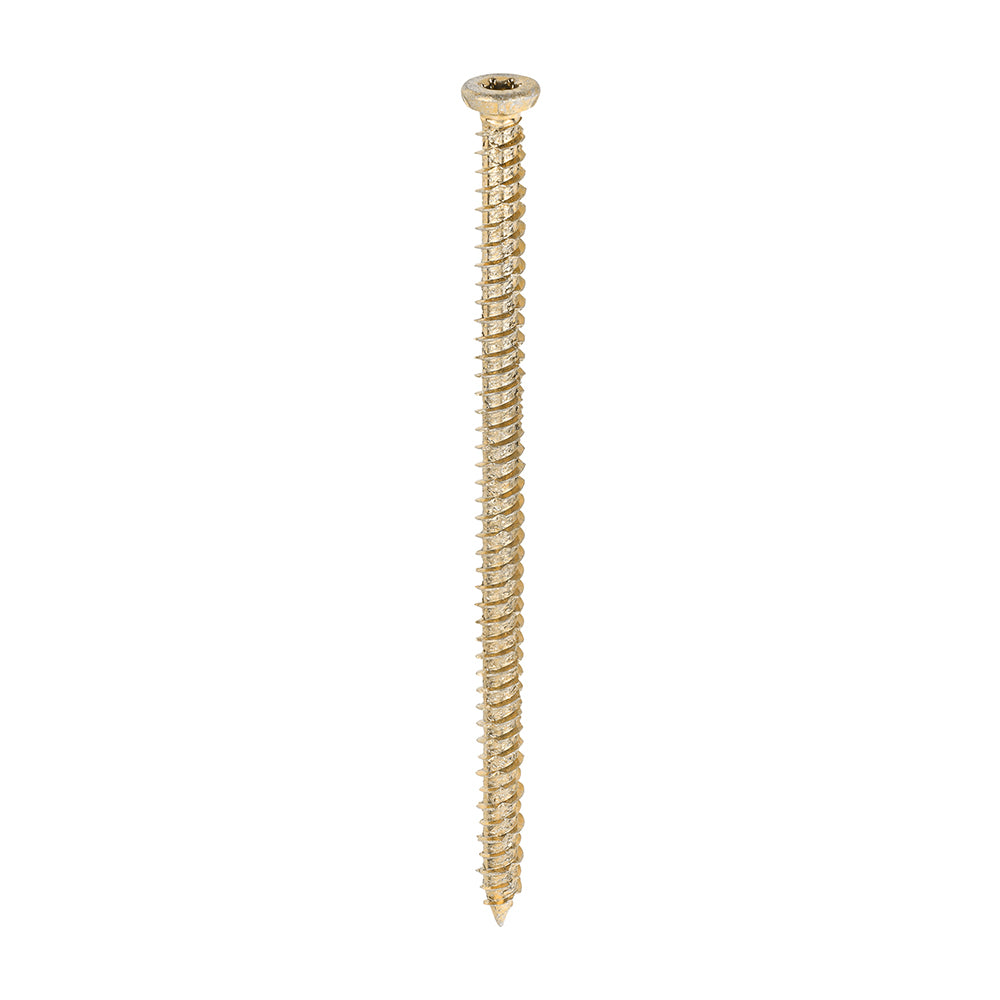

- Rapid and effective light-duty anchoring system for concrete, brick, stone, concrete block, and wood.
- Replaces traditional masonry fixings with efficiency.
- TX30 TX Drive recess minimizes driver wear and prevents camming-out.
- Serrated V-threads ensure optimal insertion into various masonry types.
- Zinc plated and yellow passivated for superior corrosion resistance.
- High-Low thread on the initial 30mm aids insertion and reduces torque.
- Ideal for fitting windows and door frames.
- Features a flat countersunk head with five locking ribs.
- Complies with BS 7671 standard's 18th edition for materials that support wiring systems during fire events.
Product Specifications:
- Brand: TIMCO
- Approval: BS 7671:2018
- Corrosion Rating (1-5): 1 - Suitable for clean, dry, and low humidity environments
- Driver Bit Size: TX30
- Finish: Zinc & Yellow
- Fixture Hole Size Ø (mm): 8
- Head Type: Flat Countersunk with Ribs
- Included Items: TX30 S2 Bit (Qty 1)
- Material: Carbon Steel
- MFT (mm): 80
- Thread Coverage: Fully Threaded
- Thread Ø (mm): 7.5
- Thread Type: High-Low Start with V Flutes
- Point Type: Sharp
Versatile Anchoring:
- These concrete screws offer versatility for various substrates, including wood, concrete, brick, block, and stone.
Robust and Fire-Safe:
- Crafted from carbon steel, these screws are robust and non-flammable, complying with BS 7671 standards for added fire safety.
Packaging Information:
- Pack Dimensions L x W x H (mm): 170 x 118 x 58
- Pack Weight (kg): 2.52
- Pack Qty: 100 screws per box
- Packs per Carton: 8 boxes per carton
- Packs per Pallet: 288 cartons per pallet
