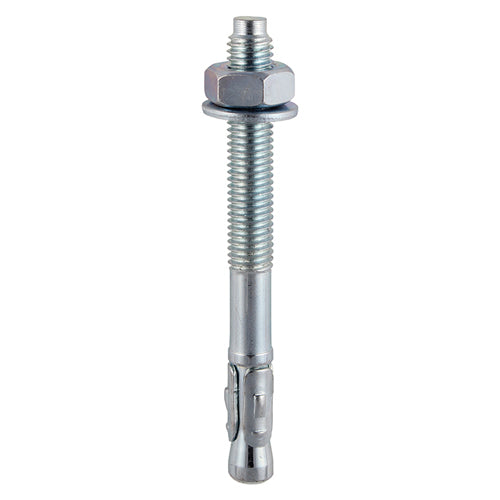

Throughbolts - Zinc M20 x 215
- Product Code: 20215TB
- Pack Type: Box
- Pack Quantity: 8 Pieces
- Barcode: 5055331820518
Product Overview: The 20215TB Throughbolts in M20 x 215 size offer a versatile and torque-controlled through fixing solution suitable for a wide range of anchoring applications into concrete. Each pack includes hex full nuts and form A washers for comprehensive installation. Please note that if you lack a torque wrench, it's advisable to tighten the nut 3 to 4 full turns from finger-tight.
Key Features:
- Chamfered head design to prevent damage to the thread during installation.
- Zinc plated and passivated (3-5 microns) for superior corrosion resistance.
- Crafted from cold-formed carbon steel (grade 5.8) for exceptional durability.
- Special expansion clip facilitates rapid installation.
Product Specifications:
- Brand: TIMCO
- Corrosion Rating (1-5): 1 - Clean, dry & low humidity environments
- DIN: DIN 125-A, DIN 934
- Feature 1: Chamfered head design to prevent damage to the thread during installation
- Feature 2: Zinc plated and passivated (3-5 microns) for superior corrosion resistance
- Feature 3: Manufactured from cold-formed carbon steel (grade 5.8) for exceptional durability
- Feature 4: Special expansion clip facilitates rapid installation
- Finish: Zinc
- Fixture Hole Size Ø (mm): 22
- Head Type: Chamfered
- Included Items: M20 Hex Full Nuts & Form A Washers
- Material: Carbon Steel
- MFT (mm): 85
- MOQ: 1
- MOQ Increment: 1
- Nut Size (mm): M20
- Nut Socket Size (mm): 30
- Nut Type: Hex Full
- Pack Dimensions (mm): 235 x 94 x 91
- Pack Qty: 8
- Pack Type: Box
- Pack Weight (kg): 4.104
- Packs per Carton: 4
- Packs per Pallet: 180
- Substrates: Concrete
- Thread Coverage: Fully Threaded
- Thread Ø (mm): M20
- Thread Ø x L (mm): M20 x 215
- Thread Type: Metric
- Washer Size (mm): M20 x 37
- Washer Type: Form A
The 20215TB Throughbolts are engineered to provide a dependable and durable anchoring solution for your concrete applications. With their advanced features and robust construction, they ensure secure and long-lasting installations.
