Product Details:
- Pack Type: Box
- Pack Quantity: 100 Pieces
- Barcode: 5055017560691

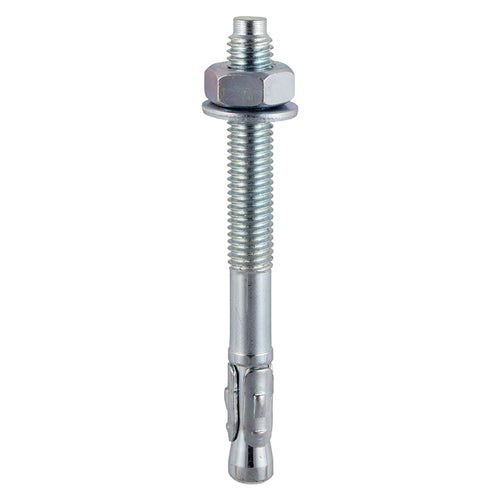

Product Overview: Throughbolts - Zinc (M8 x 65) offer a versatile and torque-controlled through fixing solution, suitable for a wide range of anchoring applications into concrete. Each package includes hex full nuts and washers for your convenience. Please note that if you don't have access to a torque wrench, you can tighten the nut 3 to 4 full turns from finger tight.
Key Features:
- Chamfered Head Design: Prevents damage to the thread during installation, ensuring smooth and trouble-free use.
- Zinc Plated and Passivated: Coated with a layer of zinc and passivated (3-5 microns) for superior corrosion resistance.
- Manufactured from Cold Formed Carbon Steel (Grade 5.8): Ensures durability and strength.
- Special Expansion Clip: Facilitates rapid installation, saving valuable time.
Product Specifications:
- Brand: TIMCO
- Corrosion Rating (1-5): 1 - Suitable for clean, dry, and low humidity environments
- DIN: DIN 125-A, DIN 934
- Finish: Zinc
- Fixture Hole Size Ø (mm): 9
- Head Type: Chamfered
- Included Items: M8 Hex Full Nuts & Form A Washers
- Material: Carbon Steel
- MFT (mm): 10
- MOQ: 1
- MOQ Increment: 1
- Nut Size (mm): M8
- Nut Socket Size (mm): 13
- Nut Type: Hex Full
- Pack Dimensions L x W x H (mm): 186 x 94 x 92
- Pack Qty: 100 bolts per box
- Pack Type: Box
- Pack Weight (kg): 2.64
- Packs per Carton: 6 boxes per carton
- Packs per Pallet: 240 cartons per pallet
- Substrates: Concrete
- Thread Coverage: Fully Threaded
- Thread Ø (mm): M8
- Thread Ø x L (mm): M8 x 65
- Thread Type: Metric
- Washer Size (mm): M8 x 17
- Washer Type: Form A
Versatile and Reliable: Throughbolts - Zinc (M8 x 65) provide versatility and reliability, making them suitable for various concrete anchoring applications.
Damage Prevention: The chamfered head design prevents thread damage during installation, ensuring optimal performance.
Corrosion Resistance: Zinc plating and passivation offer excellent protection against corrosion, extending the product's lifespan.
Quick and Efficient Installation: The special expansion clip enables rapid installation, saving both time and effort.
Choose Throughbolts - Zinc (M8 x 65) for your anchoring needs, delivering a secure and efficient solution for a wide range of concrete applications.
